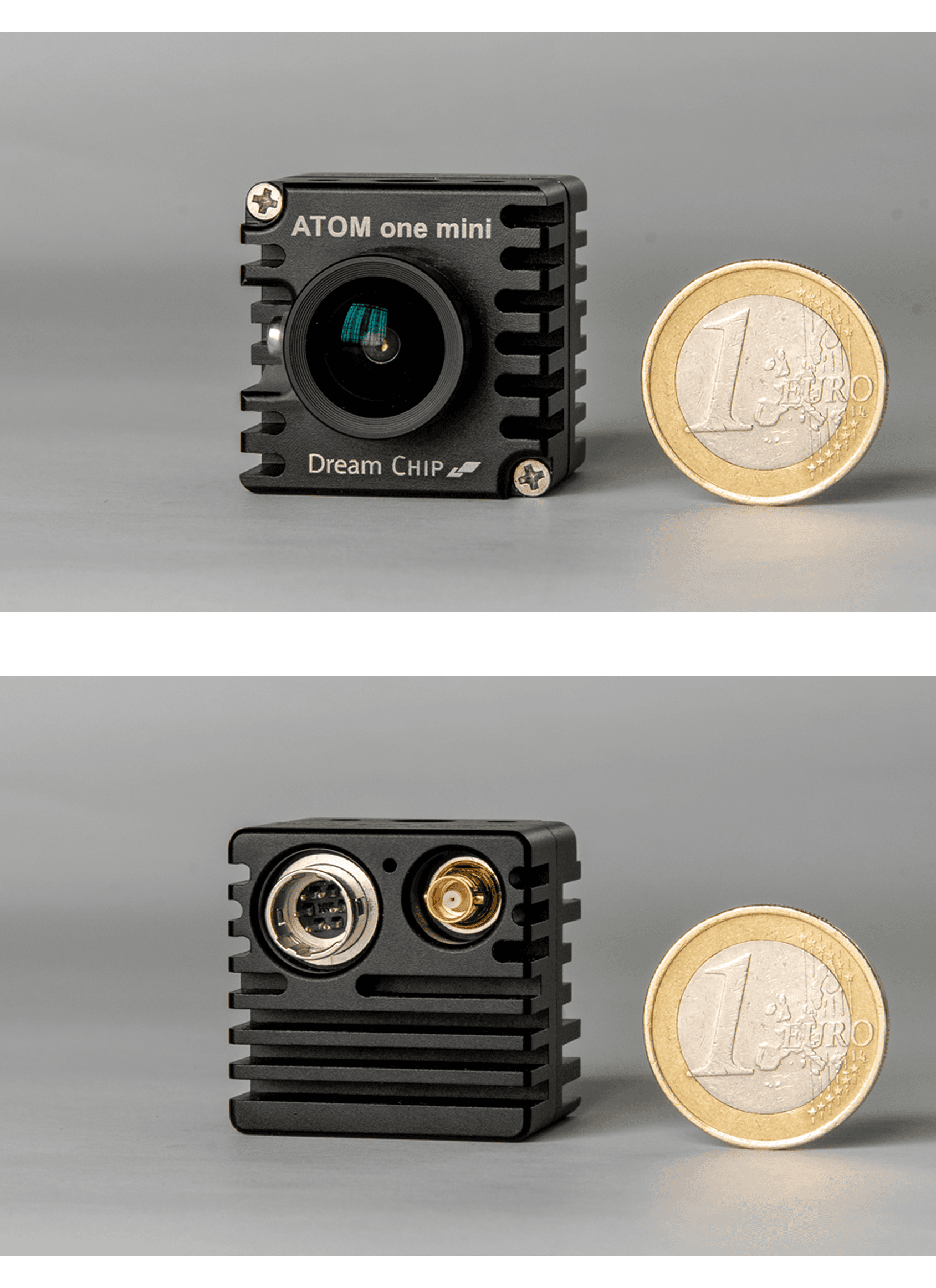

AtomOne mini
– FULL HD resolution
– HDR: HLG, PQ and SLOG3
– RS 485 control + power on hirose connector
– One 3G-SDI output
– Size : 30mmx30mmx31mm
– Weight : 45 g
– Rolling shutter
– Sensor size : 1/2.5”
– Mount : S-Mount
– Wide angle : 85° @3.4mm lens (included)
– Microphone (mono)
– multi matrix support

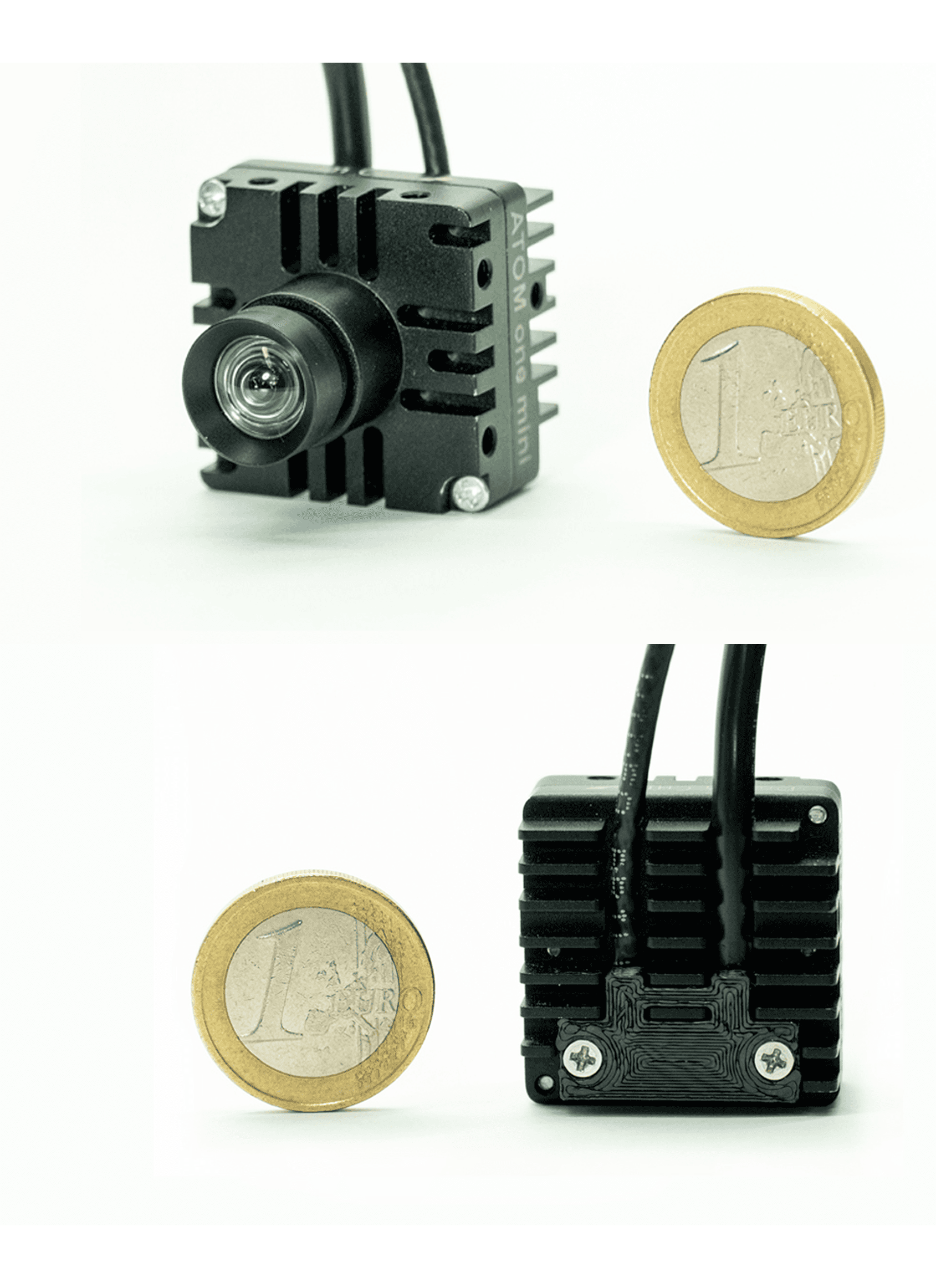

AtomOne mini AIR
– FULL HD resolution
– HDR: HLG, PQ and SLOG3
– RS 485 control + power on breakout cable
– One 3G-SDI
– outputSize : 30mm x 30mm x 18mm
– Weight : 25 gRolling shutterSensor
– size : 1/2.5”
– Mount : S-MountWide
– angle : 85° @3.4mm
– lens (included)
– Microphone (mono)
– multi matrix support

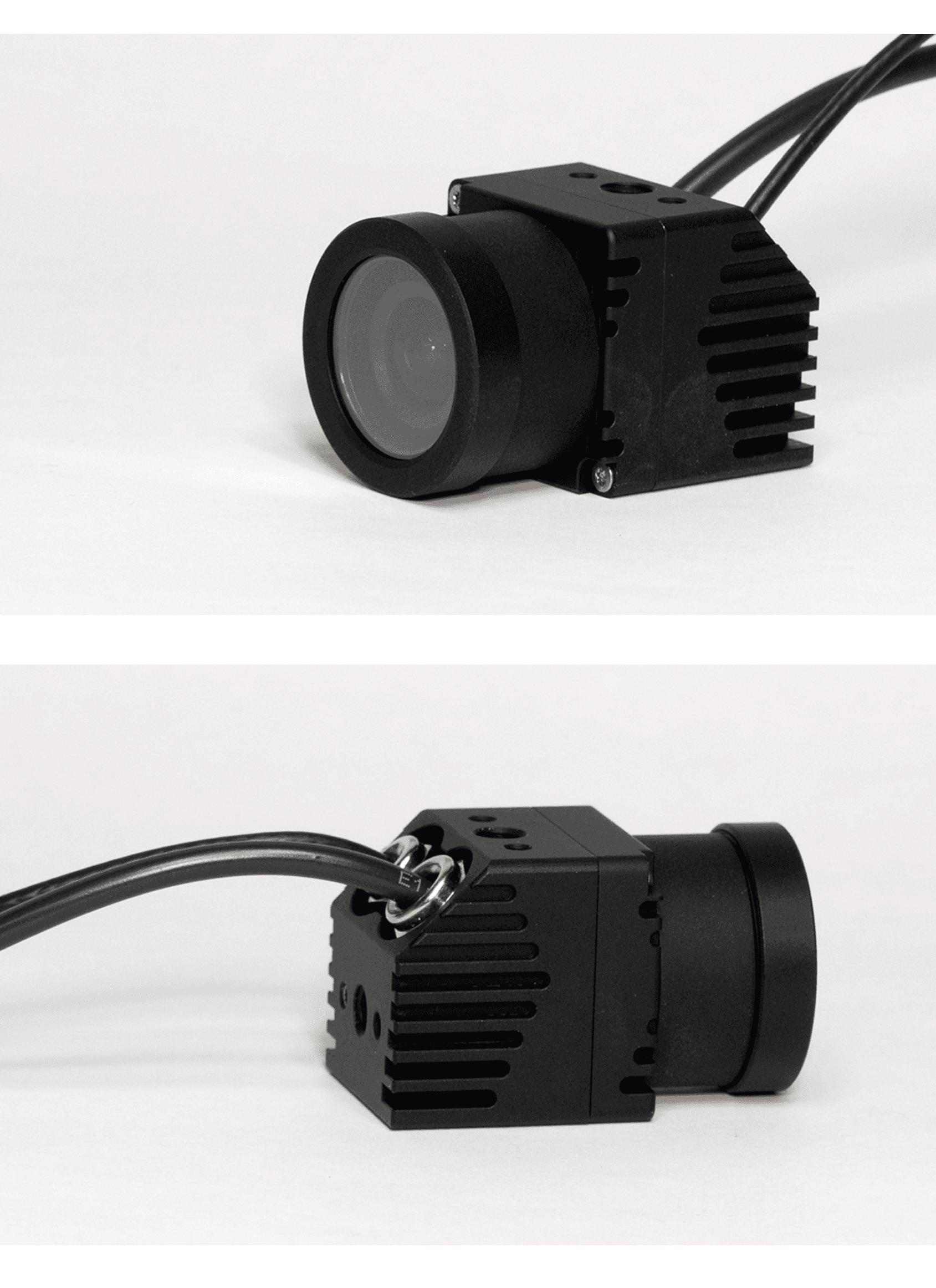

AtomOne mini Waterproof
– FULL HD resolution
– HDR: HLG, PQ and SLOG3
– RS 485 control + power on breakout cable
– One 3G-SDI output
– Size : 32mm x 32mm x 51mm
– Weight : 115 g
– Rolling shutter
– Sensor size : 1/2.5”
– Mount : S-Mount
– Wide angle : 85° @3.4mm lens (included)
AtomOne
– FULL HD resolution
– Global shutter
– Sensor size : 1/1.23”
– HDR: HLG, PQ and SLOG3
– RS 485 control + power on hirose connector
– Two 3G-SDI output
– Genlock
– Size : 32mm x 32mm x 72mm
– Weight : 100 g
– Mount : C Mount
– Wide angle : 90° @5mm lens
AtomOne 4K mini 7
– 4K resolution
– RS 485 control + power on hirose conector
– Two 4K-SDI output (one can be downscaled to 3G)
– Genlock
– Size : 36mm x 36mm x 74mm
– Weight : 122 g
– Rolling shutter
– Sensor size : 1/2.5”
– Mount : S-Mount or C-Mount (not included)
– Wide angle : 85° @3.4mm lens (included)
– Microphone (stereo)

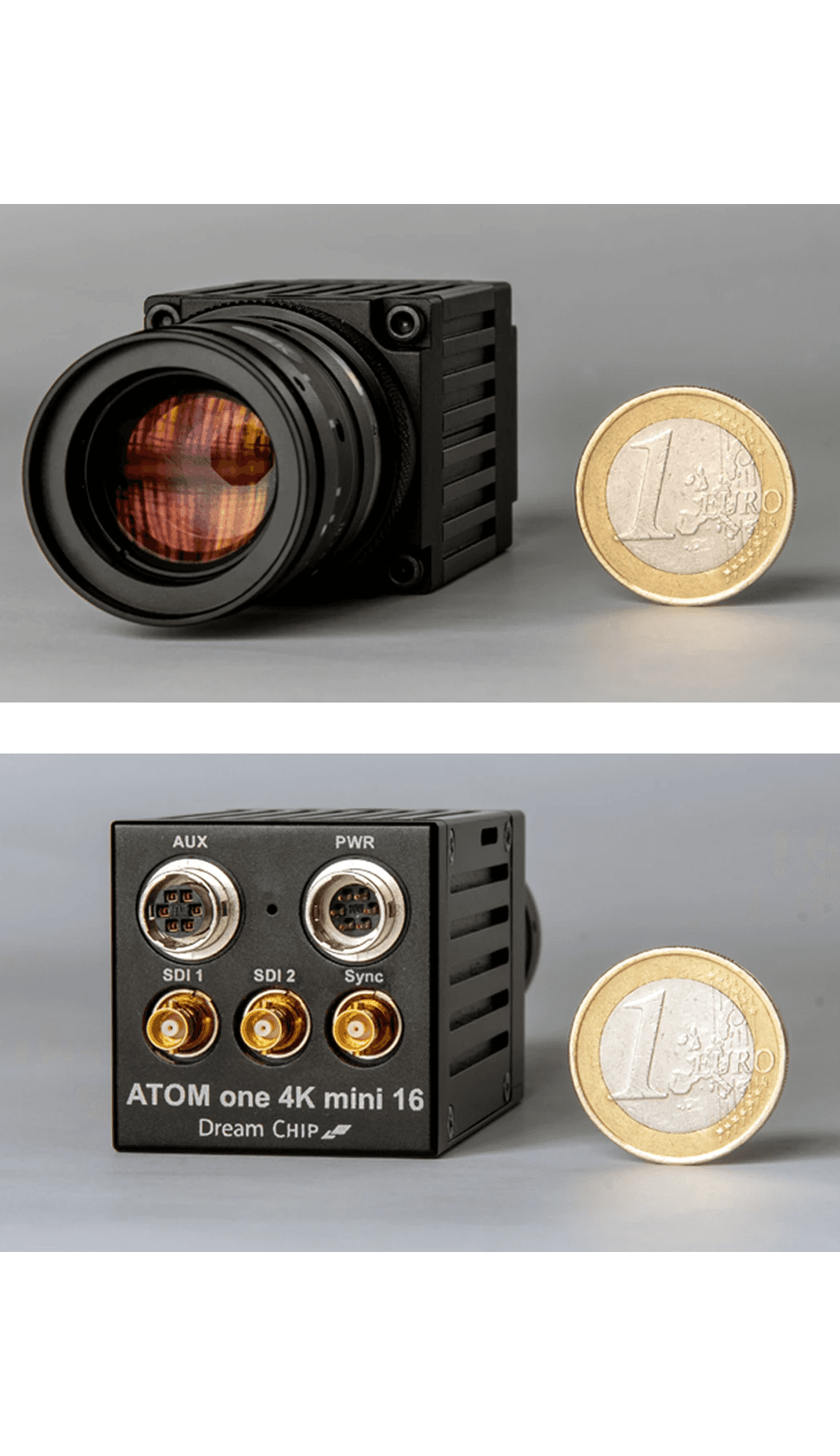

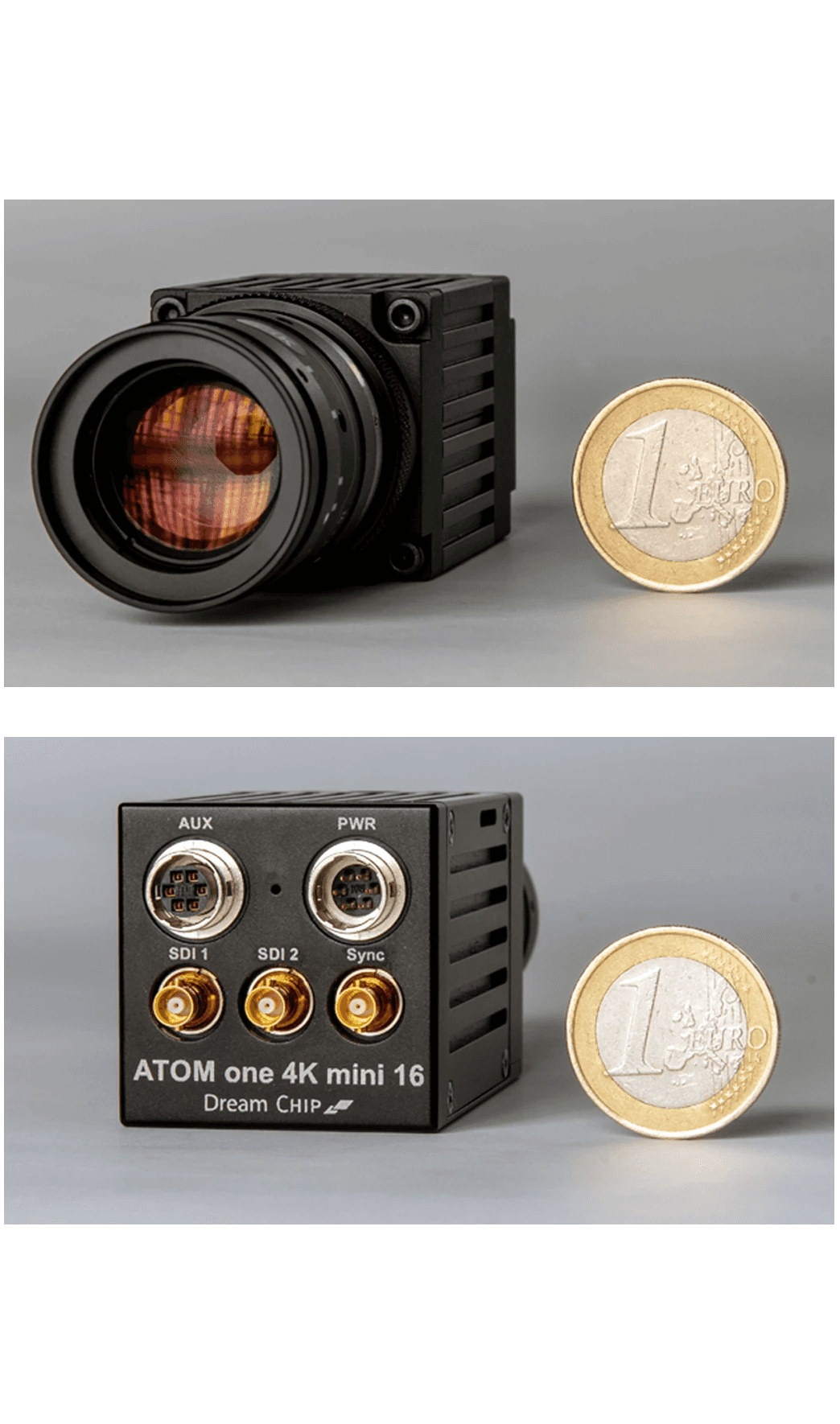

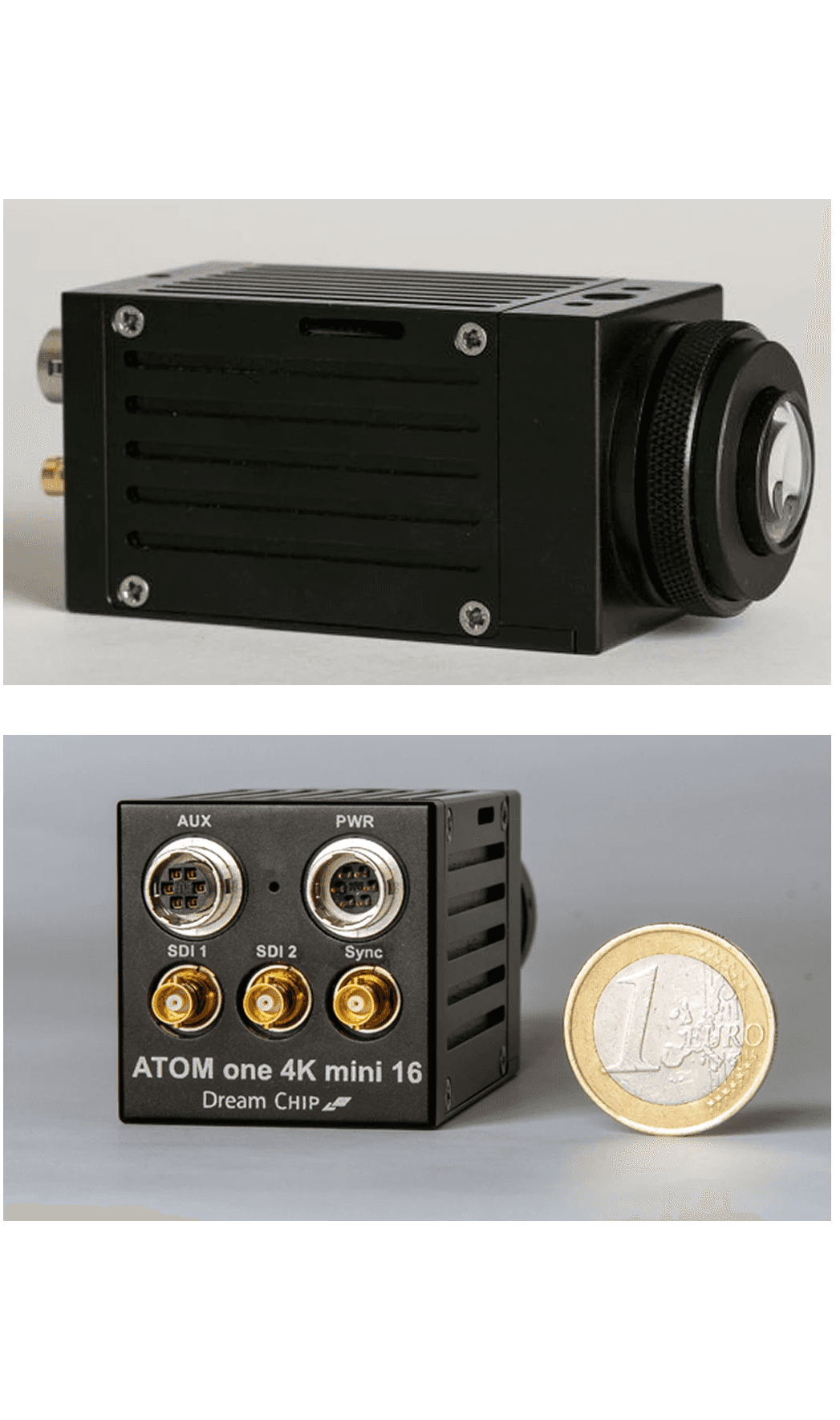

AtomOne 4K mini 16
– 4K resolution
– Global shutter
– Sensor size : 1”
– RS 485 control + power on hirose connector
– Two 4K-SDI output (one can be downscaled to 3G)
– Genlock
– Size : 36mm x 36mm x 74mm
– Weight : 123 g
– Mount : C-Mount
– Wide angle : 112° @4,7mm lens (not included)
– Microphone (stereo)
